Chiave a cricchetto pneumatica a quadrato 3/8" | WX-2803
Contattaci
SPECIFICHE
- Attacco quadrato 3/8"
- Cappuccio bullone standard 6-8 mm
- Coppia massima @ 5 sec. 27 Nm
- Peso 0,44 kg
- Lunghezza (mm) 135
- Velocità a vuoto 260
- Consumo aria 5 / 142
- Ingresso aria 1/4" PT
- Dimensione minima tubo 1/4"
- Pressione aria 90 psi

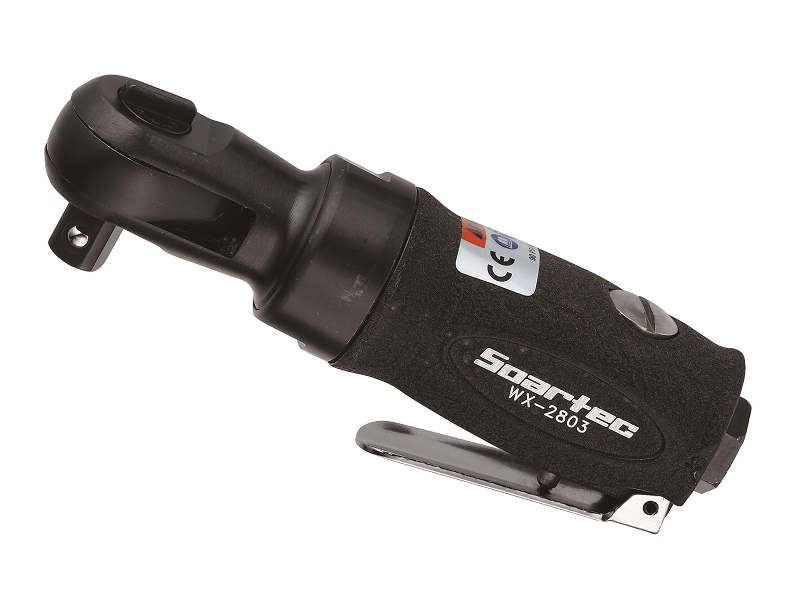

The Soartec® WX-2803 is a 3/8" square drive air ratchet wrench with 27 Nm (about 20 ft-lb) max torque and 260 rpm free speed. At 0.44 kg and 135 mm long, it is built for running 6–8 mm fasteners quickly in tight engine bays and assembly fixtures.
WX-2803 specifications
| Square drive | 3/8" |
|---|---|
| Max. torque | 27 Nm |
| Free speed | 260 rpm |
| Std. bolt capacity | 6–8 mm |
| Length | 135 mm |
| Weight | 0.44 kg |
| Air pressure | 90 psi |
| Air consumption | 5 cfm (142 l/min) |
| Air inlet | 1/4" PT |
| Min. hose size | 1/4" |
What is the WX-2803 used for?
Use it to run down or remove 6–8 mm bolts and nuts once they are broken loose, in automotive service, maintenance and assembly work where a hand ratchet is too slow and an impact wrench is too large or too powerful.
FAQ
Can the WX-2803 break loose seized bolts?
No. With 27 Nm max torque it is designed for fast run-down, not breaking loose. Use an air impact wrench for seized or high-torque fasteners.
What compressor do I need for the WX-2803?
The tool needs 90 psi and about 5 cfm (142 l/min) of air, with a minimum 1/4" hose.
