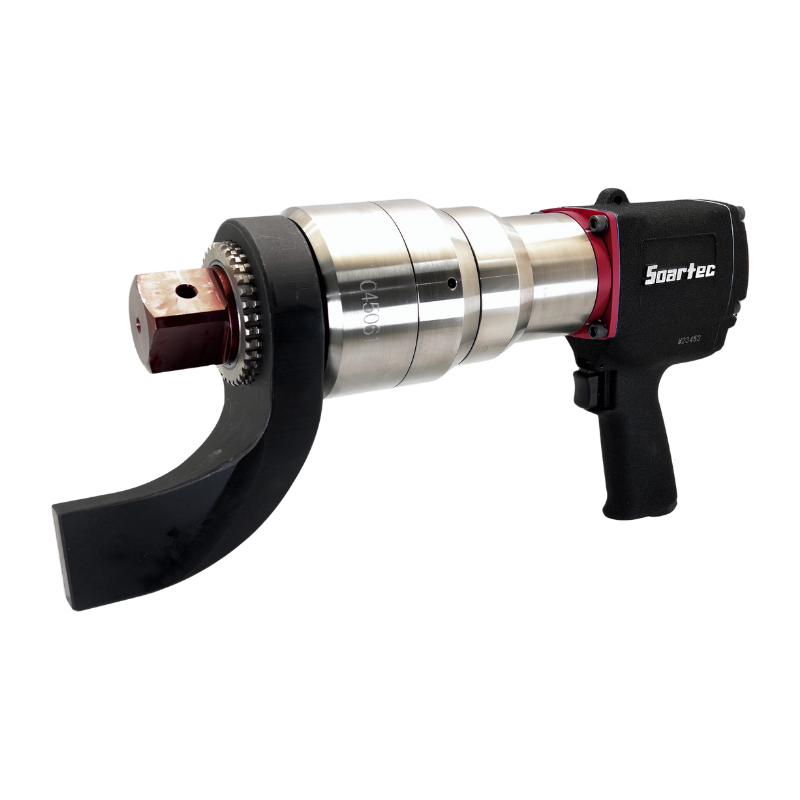

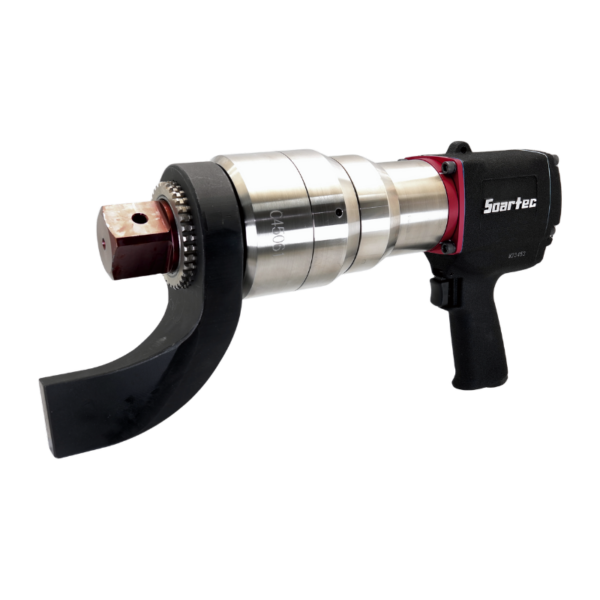

Pneumatic Torque Wrench 1-1/2″ -T46 | Torque 750-4600 Nm
- Length: 380 mm
- Width: 220 mm
- Packing (CTN): 1pc/12kg/13kg/0.5″
- Air Pressure: 100 psi (7 Bar)
- Standard Set Includes: Pneumatic Torque Wrench x1 , FRL set x1
Pneumatic Torque Wrench F.R.L (Filtration, Regulation and Lubrication Unit) Specifications：
- Filtration Accuracy：5μ
- Max. Flow Rate：4000 L/Min
- Water storage cup capacity： 80ml
- Oil storage cup capacity：150ml
- Port Size：3/4″ PT/NPT/G
- Max. Operating Pressure：250 Psi / 1.7 MPa
1-1/2″ Pneumatic Torque Wrench:
- Preset torque, output & repeat accuracy: ±5% & ±5%
- With single speed gearbox, light weight and small size, easily operated
- Suitable for continuous working with no-impact
- Supply with air register, hose, quick coupling

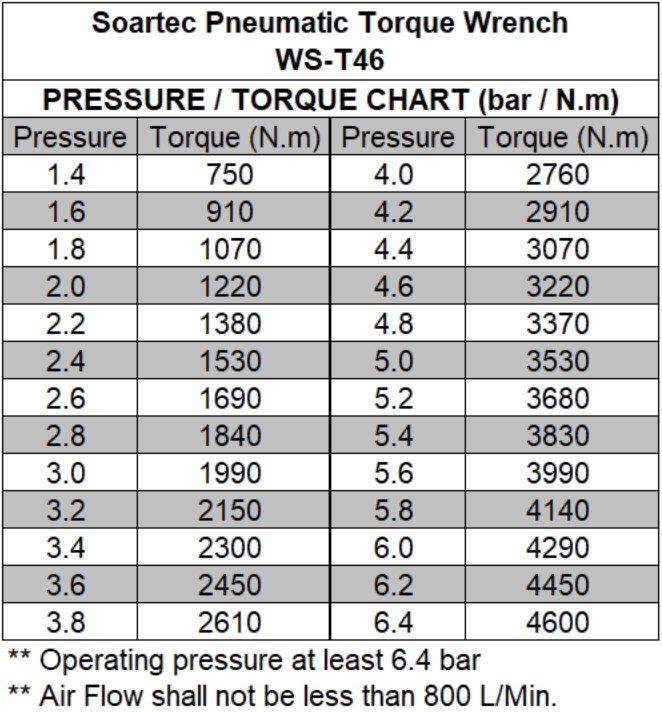

1-1/2″ Pneumatic Torque Wrench Pressure / Torque Chart
Showing 1 - 1 out of 1
Page 1 out of 1
| SKU | Thumbnails | Square Drive (inch) | Torque Range(Nm) | Free Speed (rpm) | Weight (Kg) | Action | |
|---|---|---|---|---|---|---|---|
|
|
WS-T46
|
 |
1-1/2"
|
750-4600
|
7
|
11.4
|
